Azure Active Directory setup

Last updated on 26 Jan 2024
1 min read
  1. Log in to Azure as an Admin.
  2. Go to the Azure Active Directory page.
    An image showing where the link to the Azure Active Directory is in the Azure sidebar
  3. Click on Enterprise applications.
    An image showing where the Enterprise application tab is in the Azure sidebar
  4. Click on New application.
    An image showing the new application button in Azure
  5. In the Browse Azure AD Gallery page, type sketch in the search box.
    An image showing the search results for the Azure AD gallery
  6. Select the Sketch tile from the results panel and then add the app. Give it a name, for example Sketch and click Create. Wait a few seconds while the app is added to your tenant.
    An image showing app options
  7. Click on Single sign-on.
    An image showing the single sign-on option in Azure
  8. Select the SAML tile.
    An image showing the SAML button
  9. Complete the Basic SAML Configuration section using the following information from the Single Sign-On tab of the People & Settings page in the Sketch web app:
    • Identifier (Entity ID)Your Workspace’s Entity ID
    • Reply URL (Assertion Consumer Service URL)Your Workspace’s ACS URL
    • Sign-on URL: https://www.sketch.com

    Note: Make sure that there are no spaces at the end of these fields — if there are, the SSO process will fail. Next, complete the Attributes & Claims section. Make sure you don’t use any namespace.

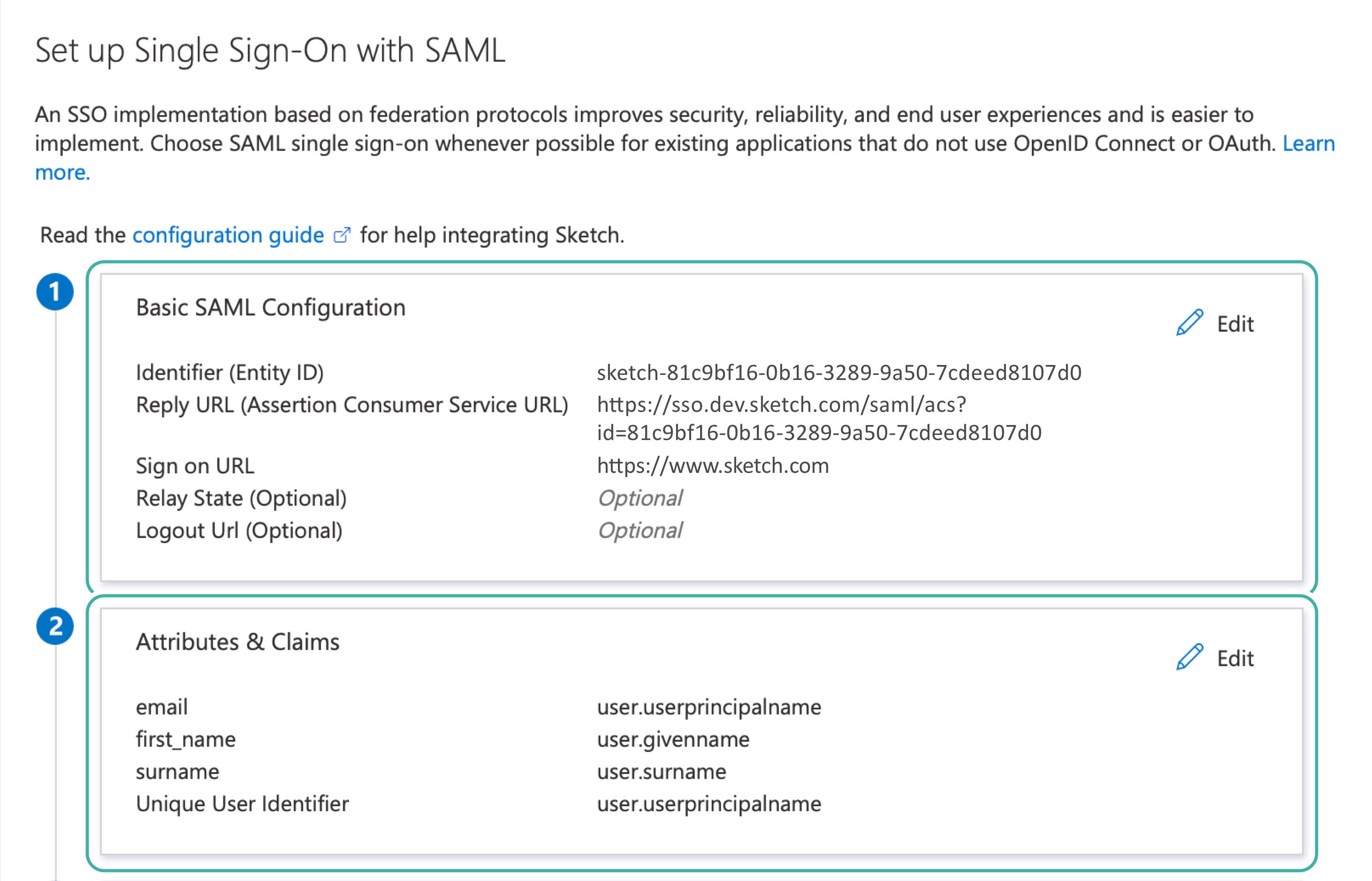

    An image showing the Basic SAML configuration and the Attribute & Claims configuration section

    Examples of the Basic SAML Configuration and the Attributes & Claims sections. The entered values will be different for every account

    The values in the right column will be specific to your organisation — make sure that you add the right information.

    Note: If you are using Safari, you might have trouble typing in the text field. We recommend trying another browser.

  10. Download the Federation Metadata XML file from the link in the SAML Certificates section — you’ll need it when setting up SAML SSO in Sketch.
    An image showing the link to download the federation metadata xml
  11. Head to Users and groups to give access to Sketch to relevant users.
    An image showing the users and groups section in azure
  12. Head to How to finish setting up SAML SSO in your Workspace to finish the SAML SSO process in Sketch.
